A new building, fence, or addition can look perfectly placed and still break setback rules. The real problem usually starts earlier than construction. It starts with an unclear property line.

A boundary survey fixes that. It shows exactly where your property starts and ends. That way, setback distances get measured from a real, confirmed line instead of a guess.

If you are planning a project, knowing how a boundary survey supports setback rules can save you from a denied permit or a costly rebuild.

Establishing the Property Boundary Before Applying Setbacks

A setback is a required distance between a structure and the property line. That rule only works if the property line itself is correct.

A boundary survey uses recorded deeds, plats, and physical evidence like markers and monuments to set the exact property corners and lines. This becomes the base for every measurement that follows.

Without this, setback distances get measured from guesses. A fence, an old stake, or a neighbor’s estimate might not match the real boundary at all.

Many lots sit in older subdivisions or have been split and re-split over the years. Boundary lines are not always where longtime owners think they are. Confirming the real line before design work starts protects the rest of your project.

Why Assumed Boundaries Cause Problems

Trusting a fence line or a rough guess instead of a survey is one of the most common reasons setback problems show up later. If a boundary is off by even a few feet, a whole structure can end up in the wrong spot.

Translating Setback Requirements Into Usable Site Limits

Setback rules are usually written as distances, like twenty feet from the front line or ten feet from the side. On their own, these numbers do not mean much without a confirmed boundary to measure from.

Once a boundary survey sets the property lines, those setback distances turn into real, usable limits on the site. This creates a buildable area where a structure can legally sit.

This matters because setback rules can differ by zoning district, lot type, and city or county. A home lot in one part may follow different rules than a business lot nearby.

A few things worth checking with your local planning department include:

• Front, side, and rear setback distances for your zoning area
• Whether corner lots follow different setback rules
• Any special setback rules tied to easements or drainage areas

Once these numbers are confirmed, a surveyor can mark the buildable area clearly. That way your design team knows exactly what space they have to work with.

Checking Proposed Improvements Against Setback Lines

Once the buildable area is set, the next step is checking your actual plans against it. This applies to new buildings, additions, decks, garages, and even some fences or small structures.

A boundary survey combined with your site plan shows whether your planned improvements fit inside the required setback lines. This is much more reliable than measuring from a drawing that assumes the boundary sits somewhere it might not.

Common problems that show up during this check include:

• A planned addition that goes past the buildable area
• A garage or shed placed too close to a side property line
• A deck or porch that crosses into a front setback

Catching these problems on paper costs far less than catching them after construction starts.

Identifying Setback Conflicts Before Construction Layout

Setback conflicts are much easier to fix before construction layout begins. Once site work starts, moving a structure to fix a violation gets expensive fast.

A boundary survey lets you spot conflicts early, while changes are still simple to make. This might mean shifting a building a few feet, adjusting a design, or applying for a variance if your project has a good reason to ask for one.

Some conflicts are small and easy to fix. Others need more review, especially if a structure needs to sit closer to a line than the standard setback allows. Rules for variances can differ by city or county, so check the process with the planning department if your project runs into this.

Fixing these conflicts before layout also protects your permit timeline. A project flagged for a setback problem during inspection can face delays that slow down the whole construction schedule.

Verifying Project Position Before Permanent Construction

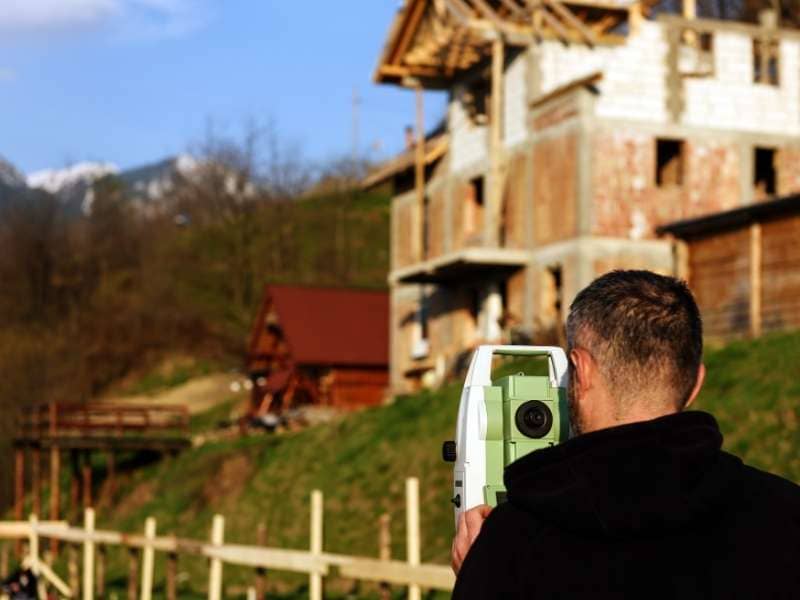

Even after a design gets approved, checking the physical layout on site is an important last step. This is where construction staking comes in. It marks the exact spot for a structure based on the confirmed boundary and setback lines.

This check catches errors before they become permanent. A foundation poured a few feet off from the approved plan can turn into a serious problem, especially if it breaks a setback rule or crosses into a neighbor’s land.

Steps worth confirming before permanent construction begins:

• The structure’s spot has been staked based on the actual boundary survey
• Setback distances have been checked in the field, not just on paper
• Any changes made during construction have been checked against setback rules

If your project’s timing depends on inspections or a certificate of occupancy, make sure this check happens before the point where fixes become hard or costly.
